Author Topic: Wheel Progress was made today at the WW&F...  (Read 13729 times)

Ed Lecuyer

  • Administrator
  • Superintendent
  • *****
  • Posts: 4,621
    • View Profile
    • wwfry.org
Re: Wheel Progress was made today at the WW&F...
« Reply #15 on: June 08, 2021, 03:28:27 PM »
Jerry and Carlos Steinke have been working tirelessly to get to this proud moment.
Ed Lecuyer
Moderator, WW&F Forum

Bill Baskerville

  • Museum Member
  • Inspector
  • ******
  • Posts: 1,451
  • Life Member
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #16 on: June 08, 2021, 04:56:16 PM »
And that is the small wheel press.  You should see the wheely big wheel press that is out back by the containers.  It will be wheely impressive when Jerry and Carlos get that one working.
~ B2 ~ Wascally Wabbit & Gofer ~

Gordon Cook

  • Museum Member
  • Engineer
  • ****
  • Posts: 521
  • Board Member 2009-2015
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #17 on: June 08, 2021, 04:58:34 PM »
Very imPRESSive!
 :o

Seriously though, a really great and thorough rebuild and clever adaptation of this press. Another valuable addition to our capabilities thanks to our dedicated volunteers.
Gawdon

Bob Holmes

  • Museum Member
  • Conductor
  • *****
  • Posts: 785
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #18 on: June 08, 2021, 06:42:30 PM »
Just WOW!  Another major addition to our shop capabilities for years to come

Bob

James Patten

  • Administrator
  • Superintendent
  • *****
  • Posts: 4,390
  • Loco for 6
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #19 on: June 08, 2021, 07:29:13 PM »
If Jerry and Carlos together could curl that wheelset, I'd be wheely impressed.

Stephen Lennox

  • Museum Member
  • Fireman
  • ****
  • Posts: 431
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #20 on: June 08, 2021, 08:11:41 PM »
It has been interesting peeking in on Jerry and Carlos on this project. Not being a Shop Rat and possessing these skills, they have worked hard and the final results is satisfying for all. Great job guys.

« Last Edit: June 08, 2021, 08:29:25 PM by Ed Lecuyer »

Jeff Schumaker

  • Museum Member
  • Inspector
  • ******
  • Posts: 1,403
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #21 on: June 09, 2021, 07:49:50 AM »
Nice work.

Jeff S.
Hey Rocky, watch me pull a moose trout out of my hat.

ALAIN DELASSUS

  • Museum Member
  • Engineer
  • ****
  • Posts: 731
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #22 on: June 10, 2021, 10:04:25 AM »
Great job of work. In France  second hand two foot gauge axles and wheels are very rare let alone trucks. AMTP just purchased two trucks in Poland but the haulage costed an arm and a leg.

Dave Crow

  • Museum Member
  • Fireman
  • ****
  • Posts: 398
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #23 on: June 10, 2021, 11:59:33 AM »
Looking at the photo above with Jerry and Carlos with a newly-pressed wheelset, several questions come to mind:

1.  Do the axles have shoulders so that the wheels cannot be pressed too far on the axle, essentially creating a no-brainer form of gauging the wheelsets?
2.  If so, do the wheels themselves have a tight tolerance from the tread to the back of the wheel?
3.  Are the wheelsets gauged based on flange spacing or back to back dimension?

Thanks in advance,
Dave Crow

Jason M Lamontagne

  • Operating Volunteers
  • Supervisor
  • ******
  • Posts: 1,873
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #24 on: June 10, 2021, 01:06:25 PM »
Hi Dave,

1.  The axles do not have shoulders.  That way we could avoid having to fit the leading edge of the axle seat in the wheel bore to accommodate a fillet which would be required for such a shoulder.

2, 3.  The wheels were gauged using go/no go gauges against the insides of the hubs, after we verified the dimension from those hub faces to the back side of the flange.  Design gauge is based on back gauge and check gauge.  We have always very carefully maintained minimum check gauge on switches and maximum check gauge on wheelsets.

These wheels are “narrow flange contour” which calls for a slightly wider back gauge in order to maintain an appropriate check gauge.  The original Maine two foot railroads invariably used narrow flange contour wheels.  In the preservation era, several wheelsets were made using modern wide flange contour wheels, but pressed to a back gauge intended for narrow flanges.  Those wheelsets have proven to wear out very prematurely (thin, sharp flanges).

These new wheelsets we have designed have very appropriate contact from flange to rail.

Thanks,
Jason

Brendan Barry

  • Museum Member
  • Dispatcher
  • *****
  • Posts: 1,116
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #25 on: July 06, 2021, 04:25:01 PM »

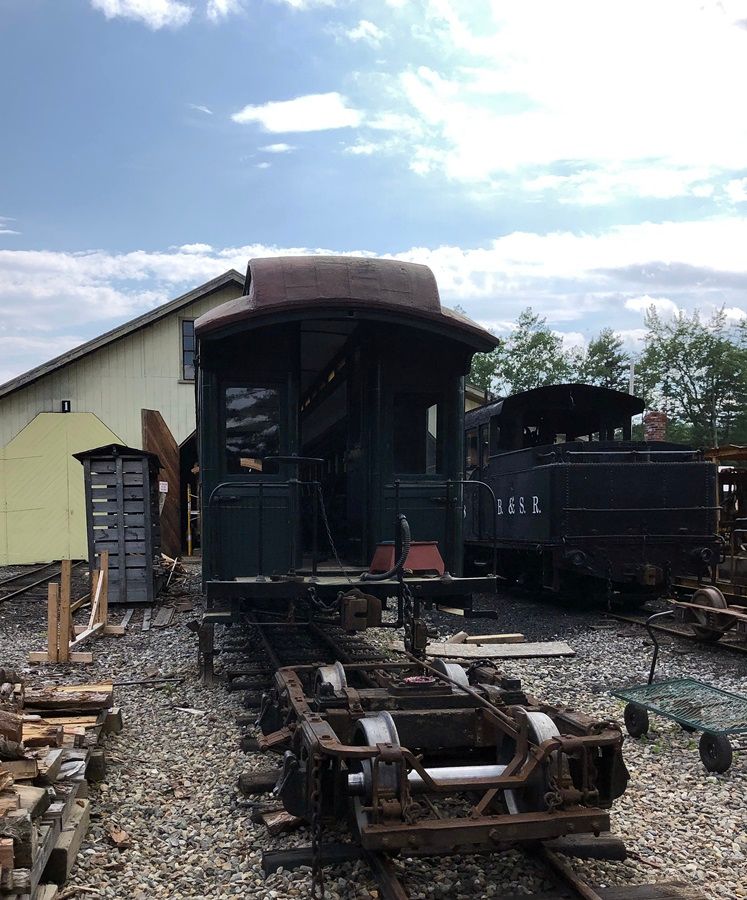

New wheel sets going under coach three to replace wheels with flat spots.

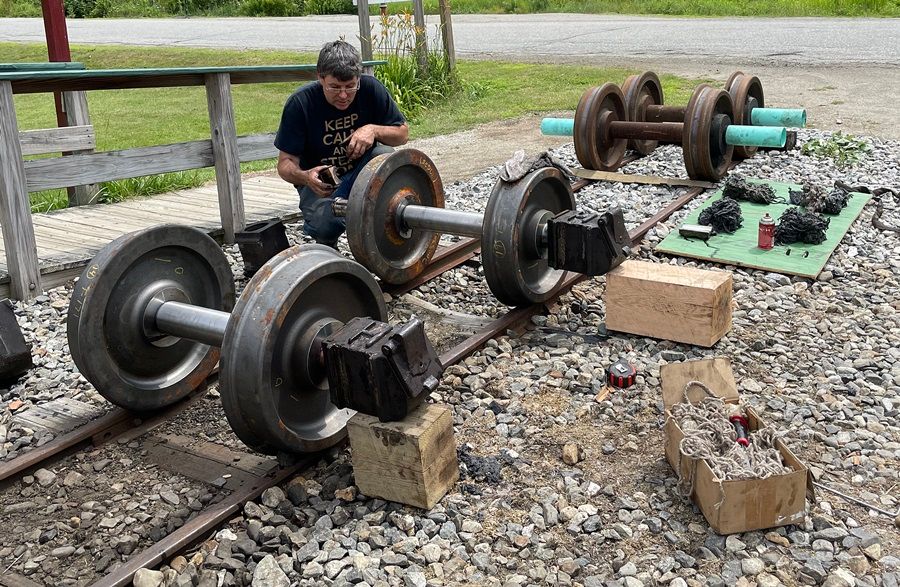

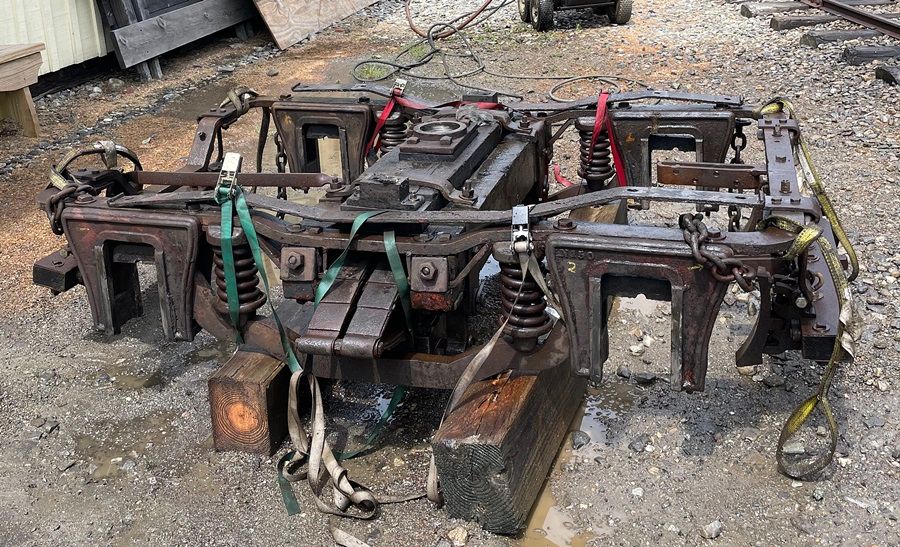

Truck frame after being steam cleaned.

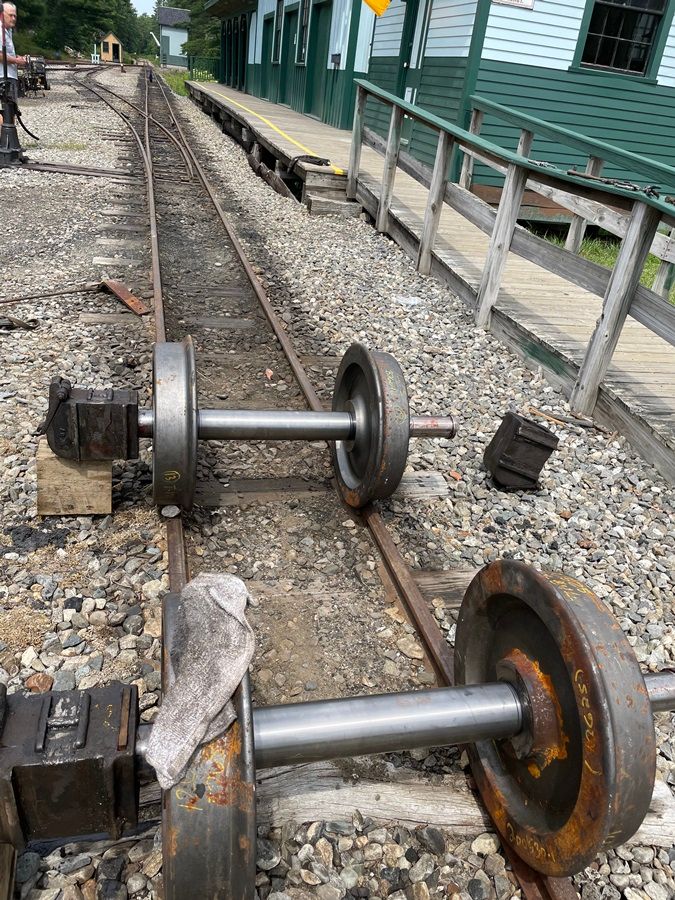

Journal boxes being placed on the new wheels. The old wheels are at the end of track.

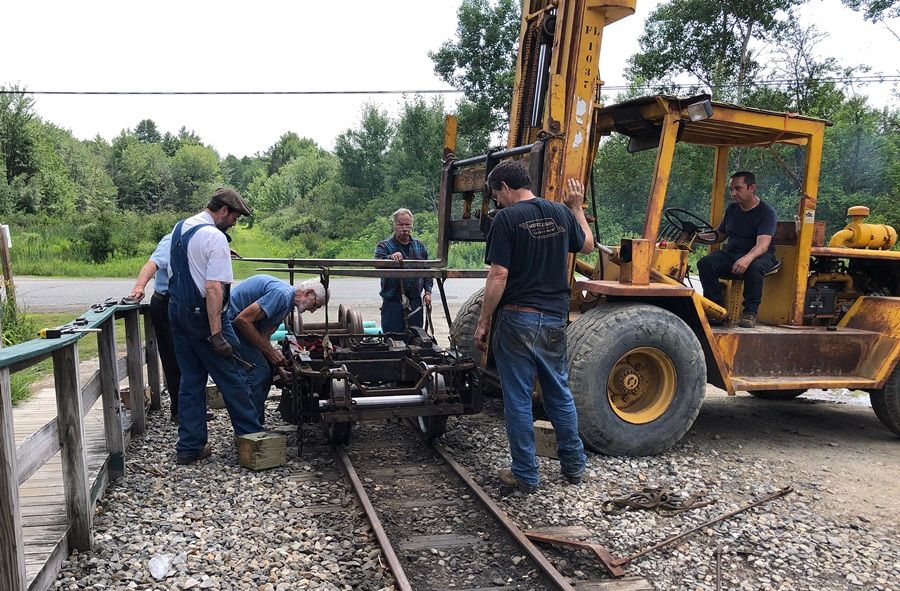

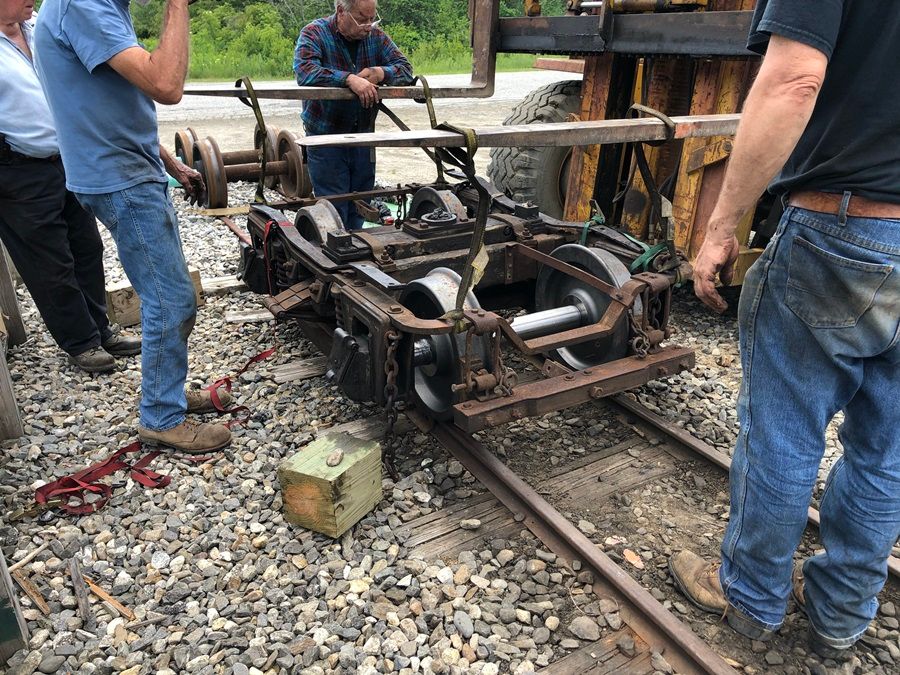

Truck being put back together.





Reassembled truck ready to be rolled under coach three.

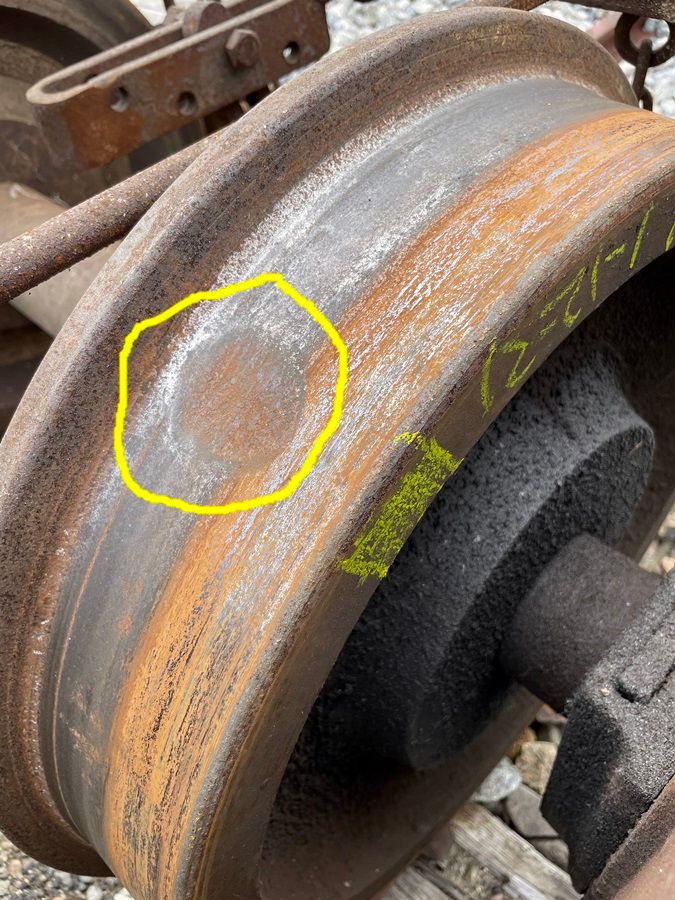

Flat spot inside the yellow circle on one of the removed wheel sets. The flat spots will be turned out of the wheels on the new lathe.

« Last Edit: July 06, 2021, 04:43:26 PM by Brendan Barry »
United Timber Bridge Workers, Local 1894, Alna, ME

John Scott

  • Museum Member
  • Brakeman
  • ***
  • Posts: 150
  • Life Member
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #26 on: July 07, 2021, 07:43:48 AM »
Great photo-essay, thank you.

Jeff Schumaker

  • Museum Member
  • Inspector
  • ******
  • Posts: 1,403
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #27 on: July 07, 2021, 09:29:28 AM »
Who's the fellow working on the journal boxes?

Jeff S.
Hey Rocky, watch me pull a moose trout out of my hat.

Ed Lecuyer

  • Administrator
  • Superintendent
  • *****
  • Posts: 4,621
    • View Profile
    • wwfry.org
Re: Wheel Progress was made today at the WW&F...
« Reply #28 on: July 07, 2021, 09:32:18 AM »
Quote
Who's the fellow working on the journal boxes?
Looks to be Eric Schade.
Ed Lecuyer
Moderator, WW&F Forum

ALAIN DELASSUS

  • Museum Member
  • Engineer
  • ****
  • Posts: 731
    • View Profile
Re: Wheel Progress was made today at the WW&F...
« Reply #29 on: July 07, 2021, 10:31:36 AM »
Thank you for the report photos and captions. A flat spot is a real problem for rolling stock and track. Has it been braught by a breaking issue or anything else?
