Author Topic: March 2020 Work Reports  (Read 13808 times)

Gordon Cook

  • Museum Member
  • Fireman
  • ****
  • Posts: 452
  • Board Member 2009-2015
    • View Profile
Re: March 2020 Work Reports
« Reply #15 on: March 09, 2020, 02:19:25 PM »
AFAIK a lot of the wheels are ~100 years old and/or sub-optimal. (The casting date on one of 9's wheels was 1921 I believe.)
We're running out of options. It's getting to be a critical issue, similar to couplers, and will require a significant outlay of money to fix. As we have with many other challenges, we'll figure it out.
Gawdon

John McNamara

  • Operating Volunteers
  • Inspector
  • ******
  • Posts: 1,494
    • View Profile
Re: March 2020 Work Reports
« Reply #16 on: March 09, 2020, 02:45:10 PM »
How can a tender wheel get a flat? It's neither powered nor braked....

Bill Piche

  • Museum Member
  • Fireman
  • ****
  • Posts: 338
    • View Profile
Re: March 2020 Work Reports
« Reply #17 on: March 09, 2020, 03:41:00 PM »
How can a tender wheel get a flat? It's neither powered nor braked....

The tender wheels on 9 (and the B&SR Baldwins) have brakes on them. 9 also has a handbrake on just the tender wheels. (7 has a handbrake but it isn't hooked up at the moment).

A number of things could have happened. Several over-zealous stops leading to the brakes locking up is one. Leaving the handbrake on accidentally is another. Both are avoidable with good operating practices.

9's hand brake usually isn't enough to hold the engine against a good dollop of power, though (and the times I've heard it left on the engine just works harder, but doesn't slide the wheels), so it's more likely from sliding to a stop and the spot developing out of that. Once the flat spot develops it's prone to being the spot that slides more than others and the beating it takes lead to the shelling that Gordon described.

The train brakes will help eliminate this issue on the locomotives, but may lead into seeing this issue on cars since cars are lighter and have more braking power (especially if you have multiple cars being controlled from one location).

Engineer/Fireman, MNGRR/WW&F
"Any day with steam is a good day." - me

Kevin Kierstead

  • Museum Member
  • Switchman
  • **
  • Posts: 68
  • Life Member
    • View Profile
Re: March 2020 Work Reports
« Reply #18 on: March 10, 2020, 12:28:34 PM »
can these wheels have a tire applied after turning? can the flat be built up w/weld?
BATLRSBS: Brotherhood of Amalgamated Track Layers, Rail Spikers and Ballast Spreaders; ToM/Trout Brook Chapter

Bill Piche

  • Museum Member
  • Fireman
  • ****
  • Posts: 338
    • View Profile
Re: March 2020 Work Reports
« Reply #19 on: March 10, 2020, 12:47:17 PM »
can these wheels have a tire applied after turning? can the flat be built up w/weld?

Tires are an option, but require turning an existing wheelset down to a blank or casting new centers (which if you're doing that you might as well make new wheels). That's a lot of machining and can only work with the solid wheelsets (like the one that came off of 9's tender or the one that replaced it). One problem is that some sets are solid and others are hollow (you can see that in the pic of the truck from Brian's boxcar), and the hollow wheelsets have very little meat to machine out (if any), and thus can't be made into blanks.
Engineer/Fireman, MNGRR/WW&F
"Any day with steam is a good day." - me

Ed Lecuyer

  • Administrator
  • Superintendent
  • *****
  • Posts: 3,591
    • View Profile
    • wwfry.org
Re: March 2020 Work Reports
« Reply #20 on: March 10, 2020, 01:32:54 PM »
[Moderator's Note]
A discussion about spiking the rails leading to a major derailment on the New Haven in Stoughton, Mass has been moved to the General Discussion section of the Forum.
Ed Lecuyer
Moderator, WW&F Forum

Mike Fox

  • Museum Member
  • Empire Builder
  • ********
  • Posts: 5,134
    • View Profile
Re: March 2020 Work Reports
« Reply #21 on: March 10, 2020, 06:12:36 PM »
They tried turning the wheel. They are cast steel, and did not agree with turning. So they hand ground the worst spots on the rear axle so they are not as noticable, and swapped it with Brian for one under his boxcar, which is turnable if necessary.
Mike
Doing way too much to list...

John Kokas

  • Museum Member
  • Supervisor
  • ******
  • Posts: 1,546
    • View Profile
Re: March 2020 Work Reports
« Reply #22 on: March 10, 2020, 06:57:08 PM »
Good practice is to turn both wheels on an axle after profile measurements are made, then both wheels are turned to the minimum profile.  This will prevent the axle from skidding due to unequal diameters on the wheel profile.  This skidding makes the truck to want to "hunt" from side to side on straight and level track.  In moderate to severe cases this can cause a very uncomfortable ride up to and including derailments especially around switches.
Moxie Bootlegger

Wayne Laepple

  • Museum Member
  • Supervisor
  • ******
  • Posts: 1,999
    • View Profile
Re: March 2020 Work Reports
« Reply #23 on: March 10, 2020, 07:33:26 PM »
The wheel in question was actually a chilled cast iron wheel. The chilling process during manufacture produces a very hard surface, while the material underneath is comparatively soft. Jason tried to break through the hard surface several times with no success. That's what required us to find a better set of wheels. Brian F. offered a wheelset from one of his boxcars in trade, since the boxcar will be used very little as opposed to No. 9's regular service.  The wheels we got are steel and can be turned but should last for a couple of years. Hopefully, by that time, we will have some new wheels that we can use.

James Patten

  • Administrator
  • Superintendent
  • *****
  • Posts: 3,856
  • Loco for 6
    • View Profile
Re: March 2020 Work Reports
« Reply #24 on: March 11, 2020, 07:01:46 AM »
Anticipated work for Saturday March 14:

* Car barn extension
* Carlos's riveter project
* Coach 9
* Machine shop
* Gift shop floor
* Board meeting at 3

It may be warm enough now to start thinking about track work, and there's also the upside-down trailer that needs paint removal and painting.

Fred Morse

  • Museum Member
  • Engineer
  • ****
  • Posts: 605
    • View Profile
Re: March 2020 Work Reports
« Reply #25 on: March 11, 2020, 05:30:10 PM »
Yesterday, Al and I finished cutting up the logs that were on the flat car"photo shoot" and this morning we started splitting it. After fixing a door hinge Stewart came by to help us. All nice wet heavy oak. By noon us old guys were done for the day.

Mike Fox

  • Museum Member
  • Empire Builder
  • ********
  • Posts: 5,134
    • View Profile
Re: March 2020 Work Reports
« Reply #26 on: March 14, 2020, 06:02:15 PM »

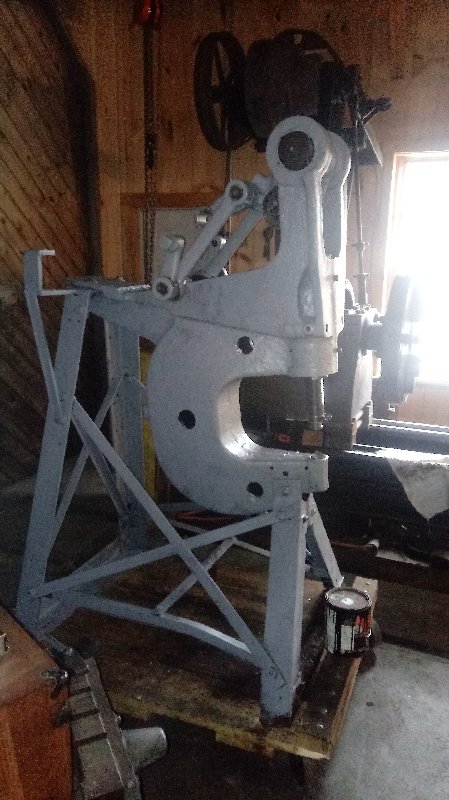

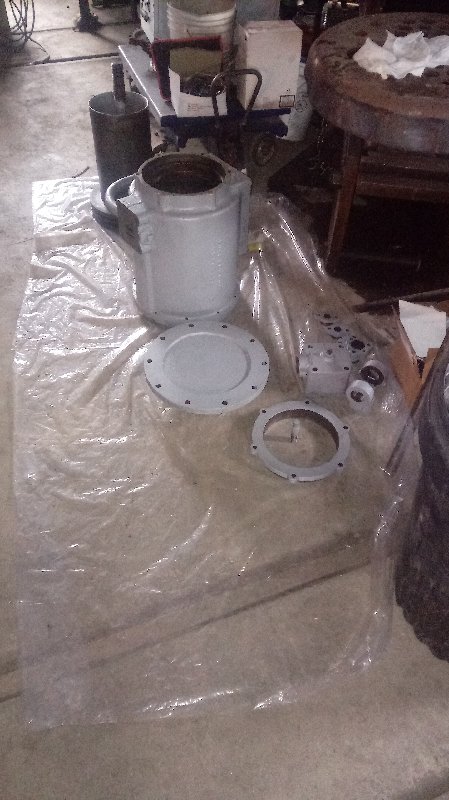

Carlos, Jerry and Alan have been pounding out the riveter



Mike
Doing way too much to list...

John Kokas

  • Museum Member
  • Supervisor
  • ******
  • Posts: 1,546
    • View Profile
Re: March 2020 Work Reports
« Reply #27 on: March 14, 2020, 06:06:14 PM »
Do I assume the internal repairs are complete and the reassembly/painting is the last stage of the project?
Moxie Bootlegger

John Scott

  • Museum Member
  • Baggageman
  • **
  • Posts: 136
  • Life Member
    • View Profile
Re: March 2020 Work Reports
« Reply #28 on: March 14, 2020, 07:04:24 PM »
Thanks for the riveter pics. That is a business-like piece of machinery.

James Patten

  • Administrator
  • Superintendent
  • *****
  • Posts: 3,856
  • Loco for 6
    • View Profile
Re: March 2020 Work Reports
« Reply #29 on: March 14, 2020, 08:43:42 PM »
Work done on Saturday Mar 14:

* Locos: A sizeable crew from MNG was onsite putting 3 and 7 back together after inspections this past week.
* Machine shop: Carlos and Jerry were working on the riveter.  Mike's photos show it white, but when I saw it a little after noon it was black.
* Track: Dana showed up to spike the last of the track at the north end, he was joined by Dan, James, and Bryce.
* Pavilion: Mike, Fred, me, and Stewart put up all of the north side and one panel on the south side.
* Gift shop: The floor has been painted (looks sharp) and so Linda needed help moving furniture back to paint the unpainted section.
* Board meeting: went long.
