Author Topic: Coach 9 - Official Work Thread  (Read 241288 times)

Bruce Wilson

  • Museum Member
  • Baggageman
  • **
  • Posts: 128
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #525 on: August 21, 2023, 09:33:39 AM »
I have a vague recollection of a pair of railings having been found in the engine house on the Ramsdell Farm. All these years later, I don't remember actually seeing them. I thought there was some discussion about them however.
Wanted: Copies of correspondence and photographs from "first generation narrow gage railfans" such as Linwood Moody, Dick Andrews, Lawrence Brown, Ellis Atwood, H.T. Crittenden and others. Interested in all two foot (U.S.) rail operations, common carrier, industrial/mill and park/museum.

Marcel Levesque

  • Museum Member
  • Switchman
  • **
  • Posts: 54
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #526 on: August 21, 2023, 02:47:01 PM »
Flat car #126 was built with some of the metal components from Edaville open excursion car #202.

Bill Reidy

  • Museum Member
  • Inspector
  • ******
  • Posts: 1,489
  • Life member. Ack.
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #527 on: August 21, 2023, 07:41:15 PM »
Let's not forget WW&F flatcar No. 118, the first car our Museum restored 30 years ago.  All new wood, with metal components from the original car.  Here's an August 14th, 1993 photo of the restored car.  A fine start to our shop craftsmen's now well established reputation of fine car restoration and new construction.


Looking forward to coach No. 9's completion and coach No. 3's future restoration.
We want...A SHRUBBERY!  One that looks nice, and not too expensive.

Marcel Levesque

  • Museum Member
  • Switchman
  • **
  • Posts: 54
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #528 on: August 22, 2023, 11:30:17 AM »
Ahhhhhhh....the early years.  This area sure looks alot different now and the mainline had not yet reached Davis Curve.   This was at about the time of the transition from the Sheepscot Valley Railroaders to the WW&F Railway Museum.  Lest we forget.....you cannot know where you are going until you know where you've been.

Fred Morse

  • Museum Member
  • Engineer
  • ****
  • Posts: 642
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #529 on: August 22, 2023, 02:11:10 PM »
I've been going every since I've been to the railroad!

Bill Baskerville

  • Museum Member
  • Inspector
  • ******
  • Posts: 1,453
  • Life Member
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #530 on: August 22, 2023, 05:47:51 PM »
I've been going every since I've been to the railroad!
Ah Fred, the Energizer Bunny of the WW&F Ry Musuem.
~ B2 ~ Wascally Wabbit & Gofer ~

Bill Reidy

  • Museum Member
  • Inspector
  • ******
  • Posts: 1,489
  • Life member. Ack.
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #531 on: August 26, 2023, 08:16:38 PM »
The shop bay 4 door was open today, so I was able to take a few photos.

Along with much of the exterior of the coach, the exterior of the two car doors have received the Epifanes epoxy primer.  I understand the doors will be lightly sanded before the final paint coats are applied.


Early in the day, before time to assemble the day's train, Eric Schade inspected the car's roof for any imperfections in the roof soldered joints.  (Eric served as brakeman on today's public trains.)  Minor repairs will be made as needed before the roof is primed.


Later in the day, Harold Downey was busy installing the safety glass in one of the car's window sashes.  Four done as of completion of this sash; many more to go.
We want...A SHRUBBERY!  One that looks nice, and not too expensive.

Kevin Kierstead

  • Museum Member
  • Switchman
  • **
  • Posts: 96
  • Life Member
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #532 on: August 27, 2023, 08:19:19 PM »
Eric:can you reuse safety glass from storm doors? I have a couple of panes and could bring them FWW.
BATLRSBS: Brotherhood of Amalgamated Track Layers, Rail Spikers and Ballast Spreaders; ToM/Trout Brook Chapter

Harold Downey

  • Museum Member
  • Brakeman
  • ***
  • Posts: 168
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #533 on: August 28, 2023, 12:12:31 PM »
Kevin, sorry it is not possible to re-cut tempered safety glass.  We appreciate the offer.

Ron Ginger

  • Museum Member
  • Flagman
  • *
  • Posts: 43
    • View Profile
A set back
« Reply #534 on: February 28, 2024, 07:39:39 PM »
We have encountered a set back. The siding on the coach is a tongue and groove board with a small V on the face to make it look like two boards. A couple years ago we installed it without any thought to paint.

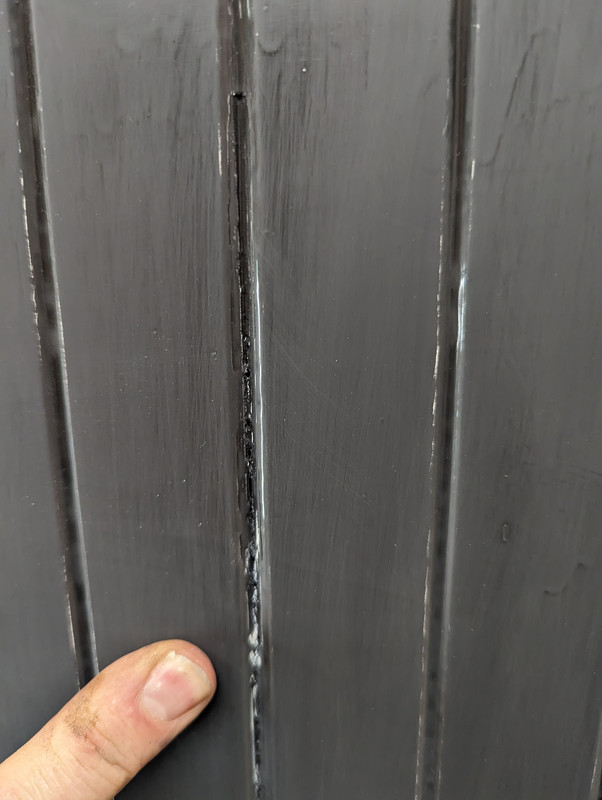

We now have 4 coats of primer and two coasts of color on it. We are in bay 4 which is heated in winter so a very dry condition. We have started to see cracks in the siding.


After hours of agonizing thought and discussion we have decided to take the hit now and replace the siding. Our next step would be the addition of gold and black decoration on the siding which is going to be quite expensive both for material and labor. We know the expansion and shrinking will continue over the life of the siding.

We made a couple mistakes here. First we should have applied primer to both sides of the boards before we installed them. This would have helped to reduce the swelling and shrinking of the siding. Our second mistake was to use a white primer under a very dark final color. If we had used a dark primer the shrinking would not have exposed a white line.

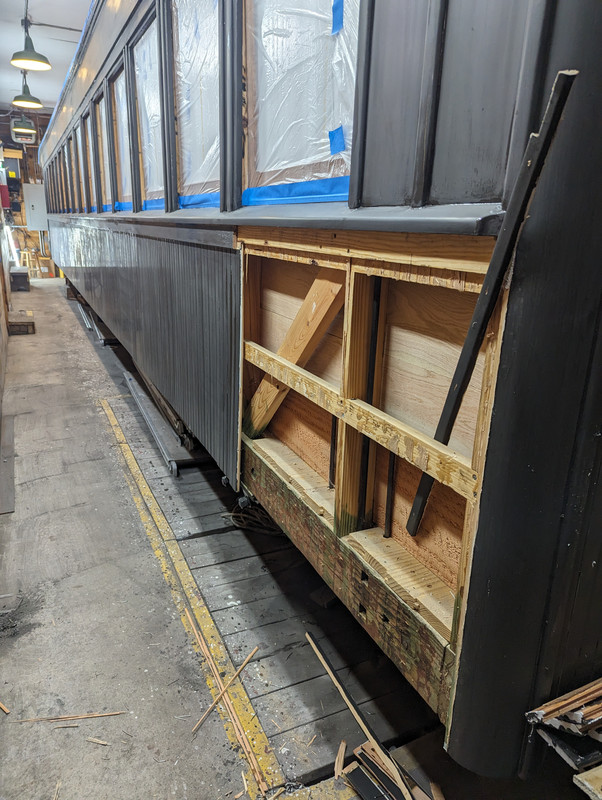

So we have ordered new siding and today began removing the old.



When we apply the new siding we will be cutting the boards to length and applying primer to both sides then at least one color coat before we hang the boards. This should give us a much better paint finish because we will be doing it on a flat bench.

The material is ordered and promised for three weeks delivery. We have many other jobs to work on in the mean time so  it wont be a big hit to finishing.

And in a minor improvement to historical accuracy, Harold counted the planks in the black and white photo of the original #3 and determined we should be using 4" wide planks. So we gain some accuracy.


Mike Fox

  • Museum Member
  • Empire Builder
  • ********
  • Posts: 5,809
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #535 on: February 28, 2024, 09:23:03 PM »
I am glad to see this. It would have been tough to keep the car looking nice with the checking. I painted the tongue on the tongue and groove I used on some exterior doors I built 20 years ago. Still look good today. It takes more time but looks better longer..
Mike
Doing way too much to list...

Benjamin Richards

  • Museum Member
  • Fireman
  • ****
  • Posts: 462
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #536 on: February 29, 2024, 08:42:22 AM »
How about painting the end grain as well? That should help with end checking.

Will the old siding be useful for another coach?
« Last Edit: February 29, 2024, 10:10:19 AM by Benjamin Richards »

Ron Ginger

  • Museum Member
  • Flagman
  • *
  • Posts: 43
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #537 on: February 29, 2024, 09:35:53 AM »
We will be painting the end grain as well as the back, but thanks for the note.

The old siding was glued on, so it is coming off very hard. Its most likely use will be for locomotive kindling. It is a shame, but there is just no non-destructive  way to get it  off.
« Last Edit: February 29, 2024, 11:24:06 PM by Ron Ginger »

Mike Fox

  • Museum Member
  • Empire Builder
  • ********
  • Posts: 5,809
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #538 on: April 13, 2024, 05:59:43 PM »

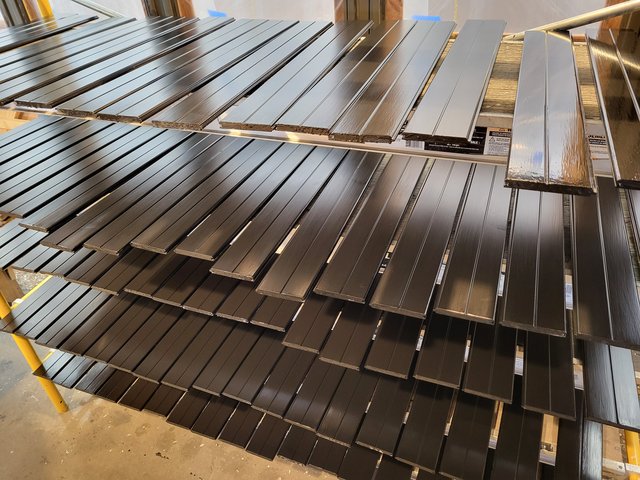

Siding progress. Black primer is being done this time, and a coat of color will be applied before the boards are installed..



Mike
Doing way too much to list...

Ron Ginger

  • Museum Member
  • Flagman
  • *
  • Posts: 43
    • View Profile
Re: Coach 9 - Official Work Thread
« Reply #539 on: July 17, 2024, 09:43:23 PM »
Tuesday, July 16 was a momentous day. we replaced the last piece of the exterior siding and trim and finished the last of the 2nd coat of the color paint. The coach is now back to the state  is was a few months ago, but with a black primer under the dark green color.

It was tough to backtrack, but the coach is now  in much better shape. The entire exterior is now well coated with primer and color. We will now give it one  more sanding, then make a decision about a 3rd coat of paint. We are leaning toward that so we can have the best possible base for the decorative lettering and striping to come next.

Sorry I don't have a photo to post, but it  is really impossible to get a decent shot in the shop bay.
