Author Topic: WW&F No. 11 - Official Work Thread  (Read 275797 times)

Bernie Perch

  • Museum Member
  • Hostler
  • ***
  • Posts: 247
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #270 on: September 05, 2013, 04:08:52 PM »
Stephen,

For the unteenth time, thank you for posting my photos.  This would be an impossible task for me.  I look for the day in the not too distant future when we start seeing castings.

Dave,

This is only for the frame center body bolster.  The outer tapered parts are machined flat to fit between the frame pieces. The larger diameter round section is machined to fit onto the truck bolster pad which I assume is similar to the one we put on the TCDA trucks a few work sessions ago.  My next group of patterns tentatively will be all the castings for the trailing truck.  First, I have to do the intermediate body bolster casting pattern, but it is not as complicated as this one and shouldn't take as long.  I told Jason to forward the truck pattern drawings to me when they are ready.

Bernie

Stephen Hussar

  • Museum Member
  • Conductor
  • *****
  • Posts: 911
  • Life Member
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #271 on: September 07, 2013, 07:40:32 AM »
Happy to help, Bernie! This "official" No 11 thread has had over 35,000 views! I'd say people are VERY interested
in this project!  :)

Stephen

Dave Crow

  • Museum Member
  • Fireman
  • ****
  • Posts: 367
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #272 on: September 08, 2013, 05:23:34 PM »
Hi Bernie,

I made drawings for most of the castings required for the rear truck including the center casting (the pieces out at the end of the bolster that has a circular hole in it) and the the pivot casting.  Because I had drawn the parts to scale, I believe Jason was planning to mark them up by the percentage required to account for shrinkage as the casting cools.

I look forward to seeing the patterns for the bolster parts; with enough donations, the flat stock and angle steel required for the rear frame and truck could be purchased.  Wouldn't it be neat to see the rear portion of #11 sitting in one of the roundhouse stalls?  Dream even bigger and have the tank made and mounted on the frame!

Dave

Dylan Lambert

  • Museum Member
  • Switchman
  • **
  • Posts: 93
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #273 on: September 08, 2013, 09:23:36 PM »
You know what might not be a bad idea? See if WPI or one of the other technical schools in the region would be willing to make some mini replicas of No. 11's number plates on their CNC machine... Sell them to raise funds for the project and give out some flyers describing the endeavor with them...

Bernie Perch

  • Museum Member
  • Hostler
  • ***
  • Posts: 247
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #274 on: September 08, 2013, 09:44:59 PM »
Dave,

Is there any possibility of sending me the scale drawings?  I could start getting my mind prepared, I also can generally guess at the shrinkage rate which wouldn't be that much.  Also I could compare yours and Jason's.  When I was working on the bolster patterns, it would have been nice to see the scale drawings.

Bernie

Dave Crow

  • Museum Member
  • Fireman
  • ****
  • Posts: 367
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #275 on: September 09, 2013, 09:46:37 AM »
Bernie, I'm at a conference in San Antonio this week, but I will look on my desk at work next Monday to see if I still have copies of the individual parts.  I believe I showed you copies of them last fall when I first drew them up.  I have since sent Jason a second set, and I'm not sure if I kept copies of all the drawings or not.

I do have PDFs of Baldwin's rear frame and rear truck drawings; I can send them to you.  You wouold have to enlarge them when you print them out.  Or I can bring you an 11x17 of each at the Fall work weekend.

I think the shrinkage is about 3%, or is that the draft angle?  I'm not exactly sure how much steel shrinks when cast...

Dave

Bernie Perch

  • Museum Member
  • Hostler
  • ***
  • Posts: 247
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #276 on: September 09, 2013, 12:55:20 PM »
Dave,

It will be two to three months before I finish the intermediate body bolster pattern, so there is no rush to get the plans to me.  If it is necessary, I will ask Jason for them.  I believe the locomotive should be built from the rails up.  It would be great to see the trailing truck finished early.  We have to convince Jason to use the spoked wheel center pattern which we already have.

It would be fine for you to give me the drawings during the work weekend if you can get them ready.

The shrinkage is about 1/8" per foot.  The draft angle is 3 degrees.  I would have to check.  I put more than enough on a pattern to allow for shrinkage and machining.

Bernie

Alan Downey

  • Museum Member
  • Baggageman
  • **
  • Posts: 136
    • View Profile
    • Preservation Pattern
Re: WW&F No. 11 - Official Work Thread
« Reply #277 on: September 09, 2013, 05:43:55 PM »
Enjoy the weather while you're down in my neck of the woods, Dave! We turned the heat down a notch for September.

I am as excited as the next person to start seeing parts cast and assemblies come together for #11. But I think that there would be real value in us producing a pattern for solid wheels for the rear truck. The historical appearance is certainly a big part of that. But also, as we look into the future of the museum, it's operation, and equipment upkeep and possible construction, we only have so many sets of 2ft wheels. While there is a real and appreciable cost to getting wheels cast, and axles purchased/machined, it would be good for us to have that option, than be held strictly to the wheels we have on hand. A wheel pattern could end up being one which the museum (and maybe even others) would get a lot of use out of. I'd be curious to hear others' thoughts.

Now that I am up at school, I'm working on patterns less, but I'm laying the groundwork so that I can finish a couple of core boxes, and produce 3-6 more patterns over the winter break. I've started working on the eccentrics, but haven't fully committed to any others yet. The eccentric straps, cylinder heads, and pistons were all candidates on my list pending communication with Jason, but I'd be happy to take a swing at the rear wheels if that would be of help. We might could even make the core for the axle the same as for the pilot wheels to save time in that department.
Head of Jason Bothering Department
Shop Foreman

Dave Crow

  • Museum Member
  • Fireman
  • ****
  • Posts: 367
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #278 on: September 09, 2013, 06:20:49 PM »
Hi Alan,

I agree with the desire to have a pattern for a non-spoked wheel.  The pattern could be used for more than #11, as wheelsets tended to be shuffled between freight cars, passenger cars, and tender trucks - most of the railroads swapped axle sets between equipment to save money.

We certainly have a need for wheels. I can think of 20 wheels needed within the 5-year time frame or sooner: 8 wheels for a set of freight car trucks, 8 wheels for rebuilding the spare set of passenger car trucks, and 4 wheels for #11.  Shucks, if we wanted better (namely, round) wheels under the creamery car, there would be another 8...

I did get a price quote from a well-known (and friendly to the preservation industry) manufacturer in Pennsylvania; if we were to purchase 20 wheels, the cost would be $2000 per wheel.  The price went up to about $2200 for smaller quantities.  Monetary donations are welcome from the readers out there in internet land.

Jason, I believe, would like to have a pattern created for the Portland Co. freight car wheel; he was going to look through the museum archives for a copy of the wheel drawing.  Give him a shout, or we'll see if he sees this thread and responds!  And, yes, it would be great if the core for the axle could be re-used to save time.

Dave Crow

Alan Downey

  • Museum Member
  • Baggageman
  • **
  • Posts: 136
    • View Profile
    • Preservation Pattern
Re: WW&F No. 11 - Official Work Thread
« Reply #279 on: October 27, 2013, 08:27:10 PM »
Things have still been chugging away in the #11 patterns department. I don't know what the tally is for certain, I think we have about 20 or so patterns completed, or underway. I'm finding it really exciting to see whole component groups of patterns be completed, such as the set of bolsters that Bernie has been working on. Here's an idea of where things have come since the last update from Bernie and myself.

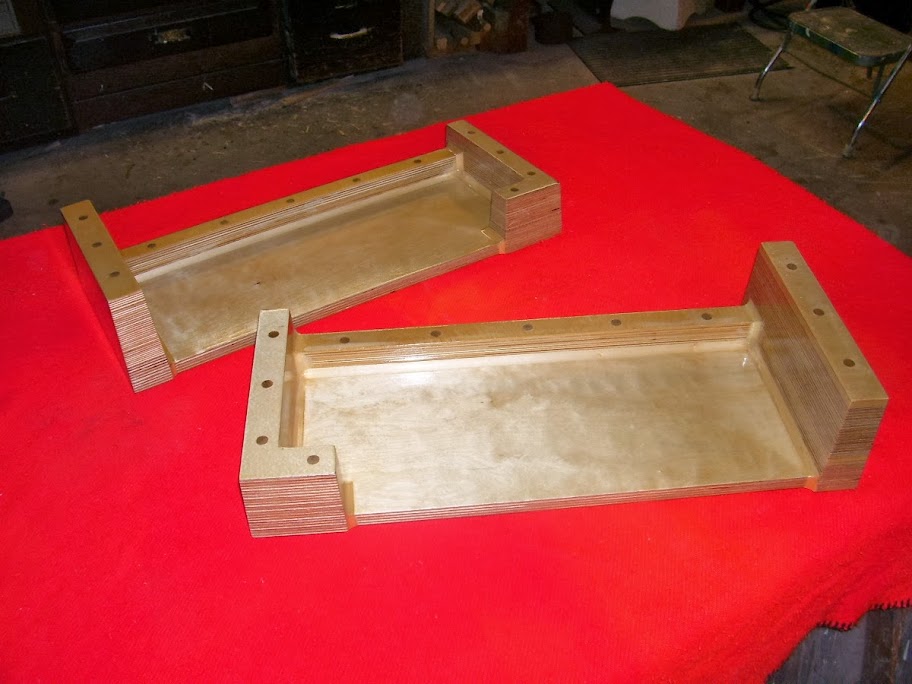

Bernie just sent these to me a week ago- this being the last of the three bolster patterns which were to be made. He always reminds me that patterns don't need to look nice, and that aesthetics are not generally a concern of his except for eye-catching patterns like the wheel centers-yet his work always looks really sweet. My hat's off to you, Bernie. I'll be looking forward to seeing your next project.

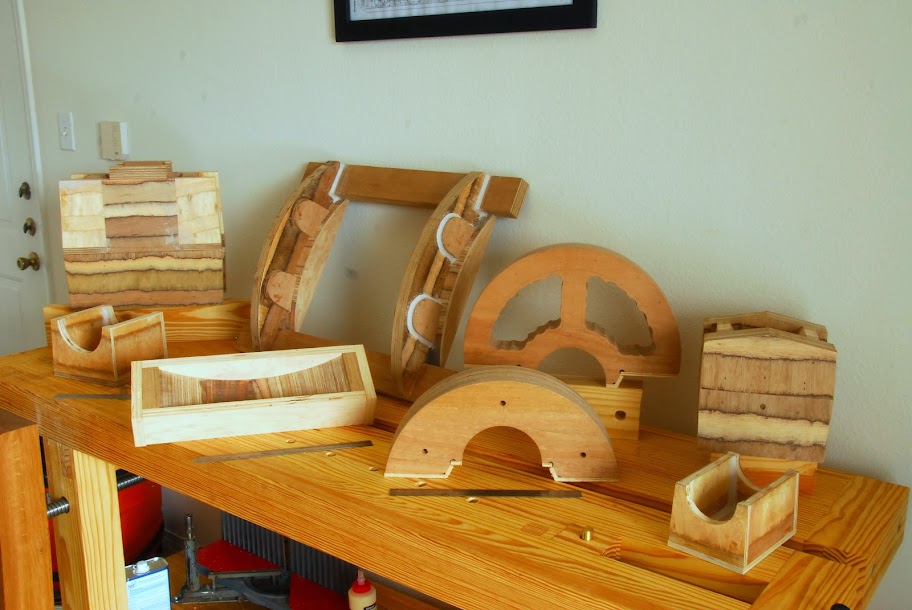

Since my last photographic update, I've gotten quite a bit done. The journal boxes and for the lead truck, and the main wheels have been mostly finished. From left to right- first there is the journal box and oil cellar for the drive axles. Then there is the frame for the lead truck leaning against the wall, and the trough-like box in front of it is the core box to produce the negative space beneath the arches. Next is the front and back halves of the eccentrics. Finally, closest to the camera is the lead truck journal box and oil cellar.









None of these patterns are done yet. They all still need some filleting, each journal box needs a core, and the lead truck frame needs some dimensional tweaking.  The larger eccentric half is still very rough on the interior. I'm trying to get some machine shop experience at school by producing a template for my router to follow with an endmill. This should get everything dimensioned and smooth. Ill then add draft by hand.

Over the winter break between semesters, I hope to finish all the fabrication work left for the patterns I've started, and also add some combination of the pistons, cross head, or valve chest to the list. We're holding off on a wheel for now, to allow for some more research. One step at a time.

Alan
Head of Jason Bothering Department
Shop Foreman

Steve Smith

  • Museum Member
  • Engineer
  • ****
  • Posts: 651
  • Life Member
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #280 on: October 27, 2013, 08:56:27 PM »
Four cheer for Alan and Bernie! So exciting to see the work coming along this well.

John McNamara

  • Operating Volunteers
  • Inspector
  • ******
  • Posts: 1,486
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #281 on: October 27, 2013, 09:39:50 PM »
Wow!

-John

Ira Schreiber

  • Museum Member
  • Dispatcher
  • *****
  • Posts: 1,075
  • Life Member
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #282 on: October 27, 2013, 11:11:58 PM »
Absolutely amazing.

'nuff said.

Ira

Bernie Perch

  • Museum Member
  • Hostler
  • ***
  • Posts: 247
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #283 on: October 28, 2013, 06:41:26 AM »
Alan,

Thanx for posting the photos.  You have to email me the steps for posting photos so I can add that to my limited computer skills.  I always try to keep in mind how the patterns will be stored so that they can remain relatively intact for future use should another locomotive be constructed.  You saw how carelessly the patterns have been stored for CNJ 113 and I found that disheartening.  I enjoy comparing our different styles of construction.  I am waiting for the next set of plans.

Bernie

Mike Fox

  • Museum Member
  • Empire Builder
  • ********
  • Posts: 5,109
    • View Profile
Re: WW&F No. 11 - Official Work Thread
« Reply #284 on: October 28, 2013, 09:25:28 PM »
I for one would like to see these displayed, exhibit style if you will, when the room becomes available. I don't mean in the station, but when the house gets revamped there is talk of having a whole floor as a museum. These would be great pieces to display there, not only to show how it was done, but how it is still done. You guys are doing fabulous.
Mike
Doing way too much to list...
